This product is a complete industrial-scale production line designed to manufacture Medium Density Fiberboard (MDF) using 100% recycled fiber as raw material. The line is specifically engineered to process secondary resources such as waste wood, discarded furniture panels, used construction formwork, wooden packaging waste, and certain agricultural residues, transforming them into high-quality MDF panels that meet international standards through advanced fiber regeneration technology.
MH-MDF
MINGHUNG
The equipment covers the entire process from raw waste material treatment to finished panel packaging, including: waste material crushing and sorting, fiber regeneration refining, high-precision glue application, high-efficiency drying, air-flow/mechanical forming, continuous hot pressing, post-processing cooling and stacking, sanding, and edge trimming. The entire line adopts modular design and intelligent centralized control, enabling a high degree of automation with minimal manual intervention.
The core value lies in completely eliminating dependence on virgin wood, significantly reducing raw material costs, while actively supporting global carbon reduction and circular economy initiatives. The physical and mechanical properties of the finished panels meet or exceed GB and EN 622-5 standards, making them widely applicable in furniture, packaging, architectural decoration, and other civil and industrial sectors.
The fully recycled fiber MDF complete production equipment consists of the following core sections:
Section | Main Equipment |
Fiber regeneration preparation | High-temperature steam pre-treatment tank, dedicated refiner for recycled fiber, fiber classifier |
Glue application system | High-precision metering pump, static/dynamic mixer, glue applicator (pipe injection or blending type) |
Fiber drying | Flash tube dryer with temperature control and online moisture monitoring |
Forming station | Air-flow former + mechanical leveling roller combination, continuous pre-press |

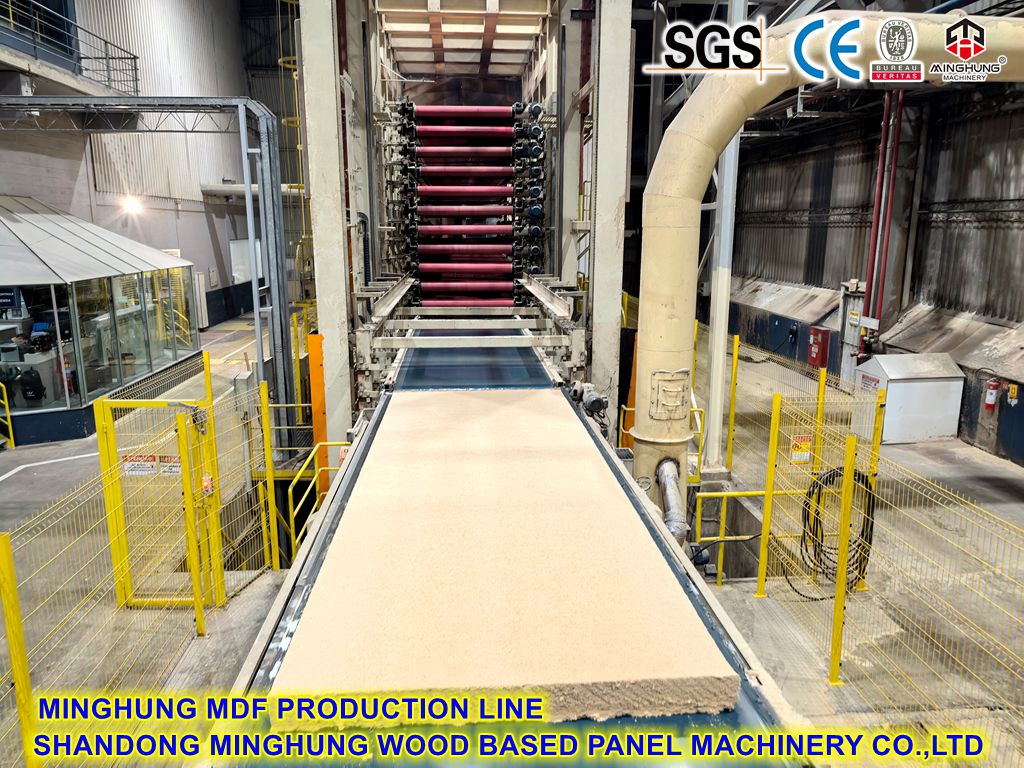

Hot pressing system | Continuous flat-press hot press (or multi-opening press, optional based on capacity) |
Post-processing cooling | Panel turnover cooler, stacker, raw board buffer system |
Cutting and sanding | Crosscut and edge trim saw, wide-belt sander (double-sided or single-sided) |
Main Technical Parameters (Customizable based on raw material and capacity)
Parameter | Available Range |
Annual capacity | 30,000 – 300,000 m³ |
Finished panel thickness | 2.5 – 38 mm |
Finished panel width | 1,220 / 1,830 / 2,440 mm |
Line speed | 200 – 1,000 mm/s |
Hot press temperature | 170 – 235 °C |
Glue content (solid resin/oven-dry fiber) | 8% – 16% (adjustable) |
Finished density | 620 – 860 kg/m³ |

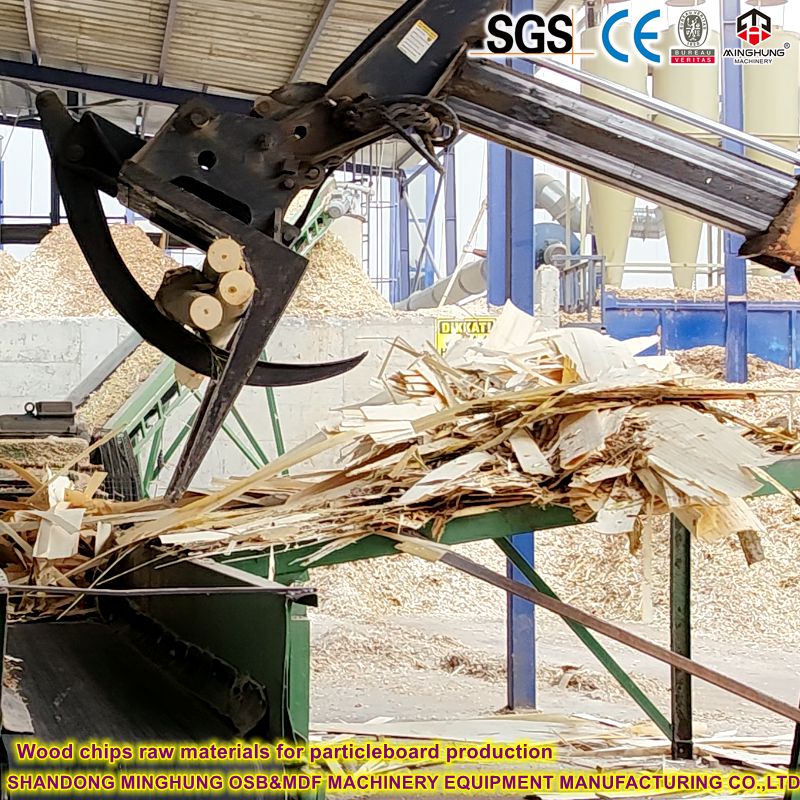

Waste furniture panels (particleboard, MDF, plywood offcuts)
Used construction formwork and pallets
Wooden packaging boxes and scrap timber
Fast-growing plantation thinning residues (can be blended)
Certain agricultural residues (corn stalks, cotton stalks, etc., can be blended after pretreatment)
General furniture liners and back panels
Flat packaging boards and pallet decking
Wall panel substrates for architectural decoration
Door core panels and partition materials
Export-grade eco-friendly MDF (compliant with EU EUTR requirements)
Raw material feasibility assessment and formulation development
Complete plant layout planning and civil work guidance
Equipment manufacturing lead time: 5–12 months (depending on scale)
Full on-site technical guidance for overseas installation, commissioning, and trial production
On-site training by Chinese engineers with hands-on follow-up for local operating teams
12-month warranty with optional extended coverage for core components
Lifetime spare parts supply and technical consulting services
Shandong MingHung OSB&MDF Machinery Equipment is a China professional factory who specilize in manufacturering and offering Wood based panel machine, including OSB making machine, MDF making machine, and Chipboard /PB making machine.
Our factory with the advanced processing lathes, Mature production technology, and Professional engineers and technicians, and independent ability of reasearch and development, and quickly service, ensure that we have the ability to offer you the suitable and good woodworking machinery as different conditions and requires.
Upgrade your production line now!
We provide global installation support and technical training, 1-year machine warranty, and 24-hour online response.
