An MDF production line is a typical energy-intensive process, where the refining, drying, and hot pressing sections consume large amounts of thermal and electrical energy. These sections generate substantial waste heat during operation, including secondary steam discharged from the refiner, exhaust heat from the dryer, cooling water heat from the hot press, and surface heat dissipation from equipment. The core concept of the Heat Recovery MDF Production Line is to capture this waste heat, which would otherwise be emitted into the environment, through specially designed recovery systems and reuse it within the production process, enabling cascade utilization and recycling of energy.

The Energy Center is an integrated energy supply system based on biomass that can provide the thermal and electrical energy required by the MDF production line. It serves as an important foundation for achieving heat recovery. The application of this system can reduce thermal energy consumption per unit of product by 15-30%, correspondingly decrease fuel consumption, and directly lower production costs.

1. Raw Material Preparation and Chipping Section

This is the starting point of the MDF line. Logs (e.g., small-diameter wood, branch wood, processing residues) are first fed into a debarker to remove bark, and then cut into uniformly sized chips by a chipper. The ideal chip size is typically 15-30mm long, 6-40mm wide, and 2-8mm thick . The chips are then screened to remove impurities and over-sized or under-sized particles. Qualified chips are conveyed to storage bins . The ideal raw material composition is 60%-70% coniferous wood and 30%-40% broadleaf wood, with bark content not exceeding 5% .

2. Fiber Preparation Section (Refining Section)

This is the core process that distinguishes MDF production from particleboard manufacturing . Qualified chips first enter a vertical or horizontal preheater for steaming and softening, with temperatures typically 165-180°C, pressure 8.0-9.0 bar, and time 2-5 minutes . The softened chips are then compressed and dewatered by a plug screw feeder before entering the refiner . In the refiner, under high temperature and pressure conditions, the chips are separated into individual fibers or fiber bundles by the high-speed relative motion of refiner plates . Modern pressurized refining systems provide excellent fiber quality, resulting in fibers with lighter color and smoother surface, while minimizing energy consumption .

During the refining process, molten paraffin (water repellent) can be injected from the refiner blowline, applied to the fibers . Paraffin is melted by steam coil heating and pumped through pipelines to the chips before entering the refiner chamber; after fiber separation, the paraffin is evenly distributed on the fiber surface .

3. Blending and Drying Section

As the separated fibers are pneumatically conveyed through the blowline towards the dryer, adhesives are applied . Traditional adhesives are urea-formaldehyde (UF) resins, but they pose formaldehyde emission issues. Therefore, the use of formaldehyde-free adhesives (e.g., isocyanate-based resins) is increasing . The blending method typically uses blowline application: a glue nozzle is configured in the blowline from the refiner to the dryer pipe; a glue metering pump transfers stable concentration glue into the nozzle while compressed air is input to atomize the glue, mixing uniformly with the fibers in a high-speed turbulent and rolling state .

The blended wet fibers enter a large drying duct, coming into intense contact with hot air. Moisture evaporates rapidly within seconds, achieving the required moisture content (typically 8-12%) . The drying system is equipped with spark detectors and extinguishing systems to minimize fire risk . Fiber drying adopts a one-stage pneumatic drying method; after wet fibers enter the drying pipe, moisture rapidly vaporizes under high temperature gradient conditions. By controlling the drying medium temperature and flow rate, the fiber moisture content reaches process requirements .

4. Forming Section

The dried fibers, after metering, are evenly spread by a forming machine onto a moving conveyor belt, creating a loose mat with a specific thickness, width, and uniform density . Forming technologies include mechanical or vacuum-air forming. Vacuum-air forming uses negative pressure to uniformly adsorb the fibers: dry fibers mix with air and are evenly spread onto the moving mesh belt in a high-speed airflow pattern. A negative pressure tank is located under the mesh belt, preventing fiber splashing and allowing fibers to be adsorbed onto the belt, gradually forming a uniform mat .

To ensure uniform fiber supply, the fiber metering bin is equipped with a level indicator, interlocked with the dryer and forming machine for electrical control . The formed mat then passes through a pre-press for initial compression, which expels air, increases density, and gives the mat sufficient green strength for transport into the hot press . The pre-press is typically a continuous belt type, with the mat moving under pressure . After pre-pressing, the mat is cut to length by a flying saw .

5. Hot Pressing Section

This is the heart and most critical part of the production line . The pre-pressed mat is fed into a hot press. Under high temperature and pressure, the adhesive cures rapidly, and the fibers bond tightly together, forming a raw board with the specified thickness and density .

Hot pressing parameters are crucial for final panel properties, primarily including three key factors :

Hot Pressing Temperature: Temperature selection depends on comprehensive factors including raw material, wood species, fiber moisture content, adhesive properties, mat thickness, pressing time, pressure magnitude, and equipment conditions.

Hot Pressing Pressure: Pressure varies during the hot pressing process. Pressure gradually increases during pressing, then should be reduced upon reaching the required mat thickness. Adhesive curing and fiber bond formation primarily occur in the low-pressure phase, typically 0.6-1.3 MPa.

Hot Pressing Time: Pressing time relates to adhesive properties and curing time, fiber quality, mat moisture content, thickness, pressing temperature, pressure, and other factors, typically expressed as time required per millimeter of board thickness.

6. Finishing Section

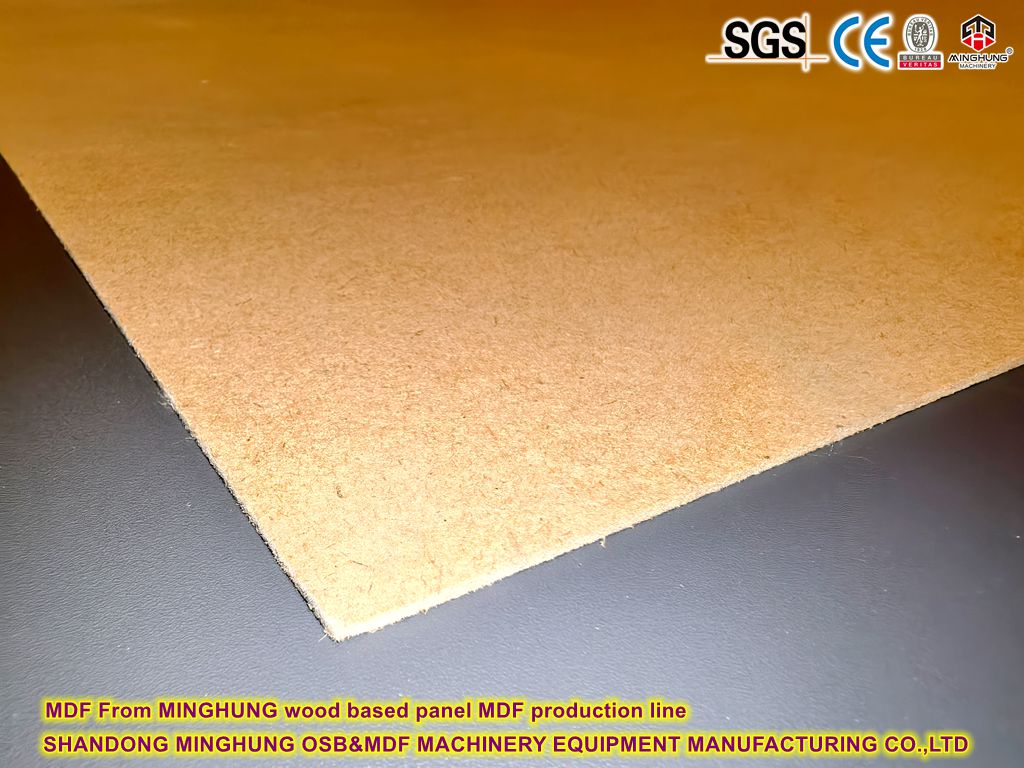

The raw board exiting the hot press is cooled, trimmed, and stacked . In traditional processes, boards often require a period of "conditioning" or "maturing" (to equilibrate moisture content and relieve internal stresses), which can take over 48 hours . Subsequently, the boards are sanded for thickness calibration and surface smoothing using wide-belt sanders, achieving precise thickness and smooth surface . Wide-belt sanders improve board surface quality and reduce operating costs . Finally, they are cut to standard sizes (e.g., 4x8 feet, 6x8 feet, 6x9 feet, 4x12 feet, 6x12 feet, etc.) or custom dimensions by panel saws according to customer requirements. After inspection, the finished boards are stacked and packaged .
