The 4x8 feet (1.2m x 2.4m) plywood production line is a highly automated and efficient industrial manufacturing system specifically designed for the large-scale production of standard 4x8 feet plywood sheets. This production line integrates dozens of processes, from raw logs to finished plywood, into a coherent and smooth automated workflow. It is widely used in construction formwork, furniture manufacturing, decorative panels, packaging, and flooring substrates. Its core advantages lie in its ability to stably produce high-quality, dimensionally uniform panels while significantly reducing labor costs and improving production efficiency.
Main Workflow and Core Components
A complete 4x8 feet plywood production line typically consists of the following core modules:
1. Log Handling Section
Process: Purchased logs are loaded onto a conveyor via crane or forklift, debarked by a debarker, and then cut into required-length blocks by a cross-cut saw.
Core Equipment: Debarker, Cross-cut Saw.
2. Peeling and Drying Section
Process: Log blocks are softened in a hot water vat and then fed into a rotary lathe, where they are peeled into continuous veneer sheets. The wet veneer is then sent into a large-scale roller dryer to reduce its moisture content to the required standard (typically 8%-12%).
Core Equipment: Rotary Lathe, Dryer.
3. Veneer Processing and Gluing Section
Process: The dried veneer is cut to standard width by a clipper and sorted manually or by automatic detection equipment to distinguish face, core, and back veneers. Qualified veneers are then fed through a glue spreader, which applies an adhesive (e.g., urea-formaldehyde, phenol-formaldehyde resin) evenly onto their surfaces.
Core Equipment: Veneer Clipper, Glue Spreader.
4. Layup and Pre-pressing Section
Process: The glued veneers are laid up manually or by a fully automatic layup machine according to the required number of piles (e.g., 5-ply, 7-ply) and grain direction to form a mat. The mat is then sent to a pre-press for cold pressing, giving it initial shape and reducing internal air for easier subsequent hot pressing.
Core Equipment: Layup Machine, Pre-press.
5. Hot Pressing Section
Process: This is the core stage of the production line. The pre-pressed mat is loaded into a multi-opening hot press. Under high temperature (typically 130°C - 180°C) and high pressure (typically 100-200 kg/cm²), the adhesive is cured, firmly bonding the multiple veneer layers into a solid plywood panel.
Core Equipment: Multi-opening Hot Press (often 10 or more openings to increase output).
6. Cooling, Trimming and Sanding Section
Process: The hot-pressed panels are cooled on a cooling rack and then precisely trimmed to the final standard 4x8 feet dimensions by a double-end trimming saw. Finally, the panels are processed through a calibrating sander to achieve uniform thickness and a smooth, flat surface, making them ready for sale.
Core Equipment: Trimming Saw, Sander.
Production Equipment
A complete, fully automatic 4x8 feet plywood production line is a complex systems engineering that integrates all processes from log to finished plywood.
Phase 1: Log Handling Section
The goal of this section is to prepare raw logs into blocks suitable for peeling.
1. Log Debarker
Function: Removes the bark from the log. Bark cannot be used for plywood production and must be removed, as it affects subsequent peeling quality and glue bond strength.
Types: Common types include drum, ring (knife-ring), and hydraulic debarkers. Ring debarkers are highly efficient and widely used.

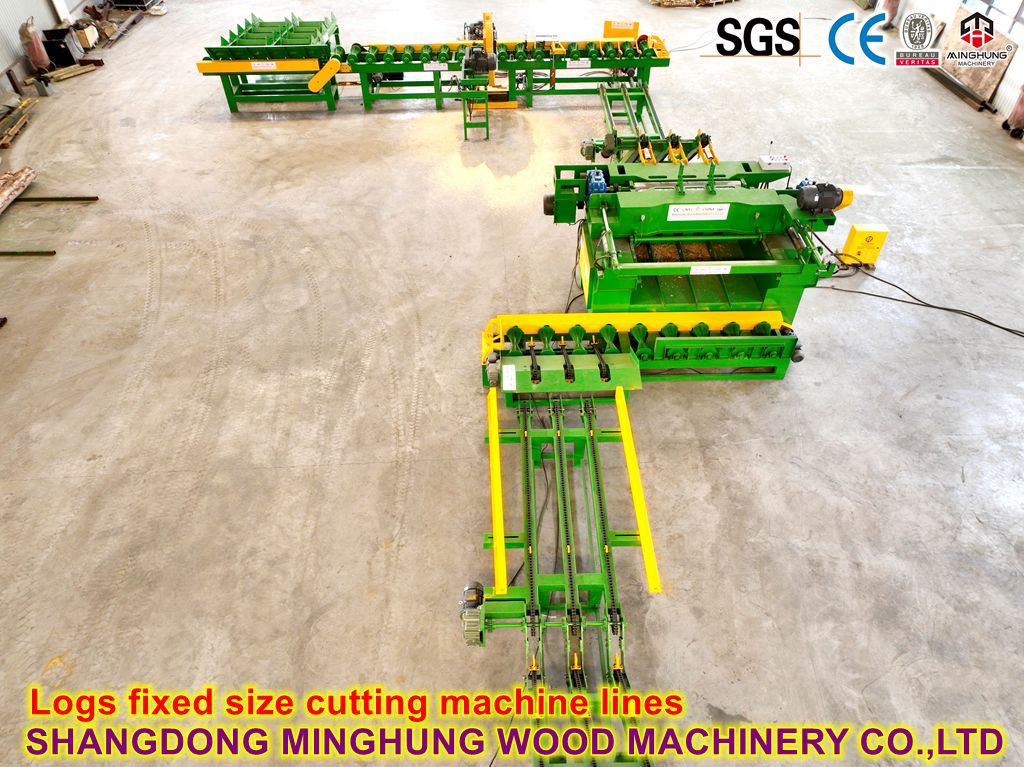

2. Log Cross-Cut Saw
Function: Cuts the debarked logs into blocks of specific lengths (often multiples of 4 feet, e.g., 8 feet) based on requirements.
Types: Typically large gantry saws or chain saws, with automated lines featuring automatic measuring and positioning systems.
3. Log/Block Conveying System
Function: Connects various processes, automatically transporting logs/blocks to the next equipment (e.g., the vat or lathe) via roller conveyors, belt conveyors, or chain conveyors.
Phase 2: Veneer Preparation and Drying Section
This is the core section where logs are transformed into dried veneer.
1. Log Vat / Hot Water Pond
Function: Subjects logs to hydro-thermal treatment (cooking) to soften the lignin, making the blocks pliable for peeling high-quality, continuous veneer without cracks.
2. Veneer Lathe / Peeler
Function: Holds the softened log block and rotates it at high speed against a precision knife carriage to peel a continuous ribbon of veneer with uniform thickness. Thickness can be precisely adjusted via CNC systems.
Key: This is one of the most critical pieces of equipment determining veneer quality and yield.
3. Veneer Clipper
Function: Cuts the continuous veneer ribbon into individual sheets according to preset width and length (e.g., 4ft, 8ft). Modern lines are equipped with automatic defect detection systems to identify and cut out defects like knots.

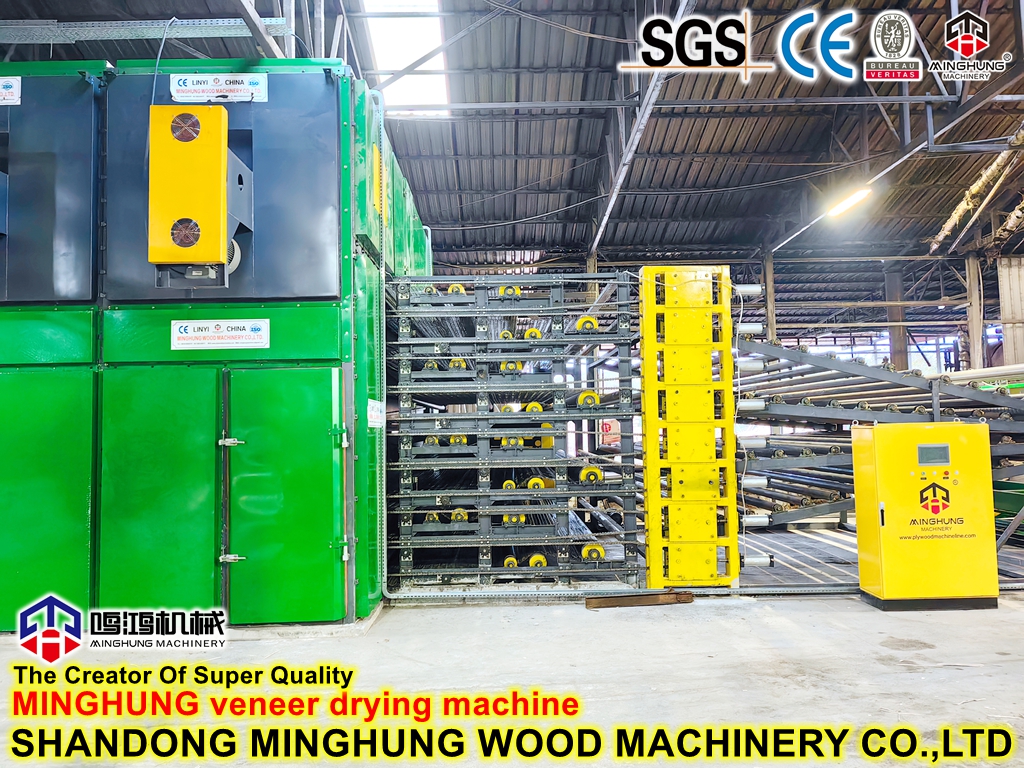

4. Veneer Dryer
Function: Dries the high-moisture wet veneer after peeling, reducing its moisture content to 8%-12% to meet gluing requirements.
Types: The most common is the roller dryer, where veneer moves through multiple tiers of rollers and is dried by hot air. Its length and number of tiers determine drying capacity.
5. Veneer Stacking and Grading Equipment
Function: Dried veneer is automatically stacked and then graded manually or by machine vision systems by quality (e.g., A, B, C grade) to be used as face, core, or back veneers.
Phase 3: Gluing and Layup Section
This section applies glue and assembles the veneers into a mat.
1. Glue Spreader
Function: Applies a uniform layer of a specific amount of adhesive (e.g., UF, PF resin) onto the veneer surface.
Types: Include four-roll spreaders and two-roll spreaders, chosen based on veneer roughness to ensure even application.
2. Automatic Layup Machine
Function: This is the hallmark equipment of a fully automatic line. It automatically picks and places different grade veneers (face, core, back) and stacks them into a mat according to preset plies and grain direction (adjacent layers perpendicular). It greatly increases efficiency, reduces labor, and ensures layup consistency.

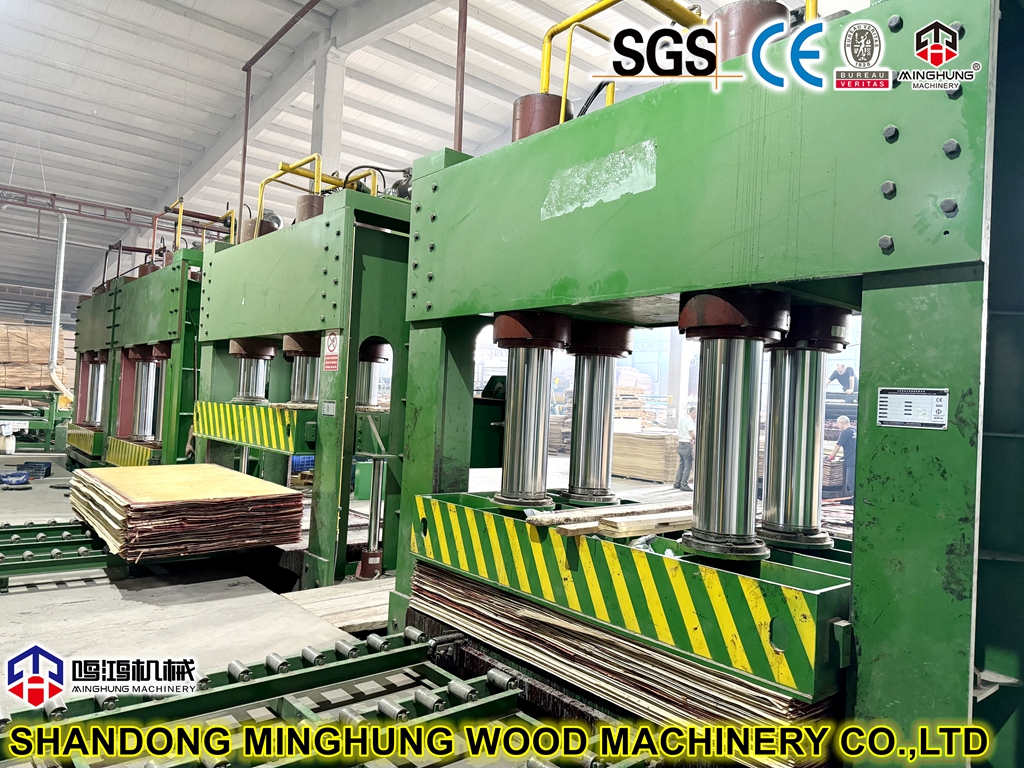

3. Pre-press
Function: Applies cold pressure to the assembled mat, giving it initial integrity, reducing internal air, facilitating handling, and allowing faster heat and pressure transfer during hot pressing, thus improving overall efficiency.
Phase 4: Hot Pressing Section
This is the core forming section of the production line.
Multi-Opening Hot Press
Function: Presses the pre-pressed mats under high temperature (130-180°C) and high pressure (100-200 kg/cm²) for a set time, causing the adhesive to cure rapidly and permanently bonding the multiple veneer layers into solid plywood.
Features: The "multi-opening" design allows simultaneous pressing of multiple panels and is the most critical equipment determining line output. It consists of a main press, hydraulic system, heating system (thermal oil or steam), and automatic loading/unloading system.
Phase 5: Finishing and Sanding Section
This section finishes the pressed rough panels into sellable products.
1. Cooling Rack
Function: Allows the hot-pressed panels to cool down naturally for a period to release internal stress and prevent warping.
2. Double-End Trimming Saw
Function: Precisely cuts the cooled rough-edged panels to the final standard 4x8 feet dimensions.
3. Calibrating Sander
Function: Sands the surface of the trimmed panels to eliminate thickness deviation, creating a smooth, flat surface and uniform thickness, achieving a surface quality ready for overlaying or direct sale.
Configuration: Usually consists of coarse and fine sanding units.
Auxiliary and Support Systems
Automated Conveying Lines: Connect all main equipment for automatic material flow.
Dust Collection System: Collects wood dust at sawing, sanding, and other stations, keeping the workshop clean and environmentally friendly.
Glue Kitchen: Automatically prepares and delivers adhesive.
Thermal Energy Center: Provides heat source (thermal oil or steam) for the dryer and hot press, key to energy saving and environmental protection in modern lines.
Electrical Control System: A PLC and industrial computer-based central control system that monitors and coordinates the operation of the entire production line.
Production Line Features and Advantages
Standardized Production: Designed for the world's most universal 4x8 feet size, ensuring high market acceptance.
High Automation: High degree of automation from log loading to product packing, drastically reducing reliance on manual labor and ensuring a stable production pace.
High Efficiency and Output: Line production and the use of multi-opening hot presses enable 24-hour continuous operation, with daily output reaching hundreds to thousands of sheets.
Excellent Product Quality: Precise equipment control ensures high consistency in veneer thickness, glue spread, hot press temperature, pressure, and time, guaranteeing the strength, flatness, and stability of the finished plywood.
Energy Saving & Environmental Protection: Modern lines are often equipped with heat recovery systems (e.g., recycling waste heat from dryers and hot presses), efficient dust removal systems, and low-formaldehyde emission adhesive technologies, complying with environmental standards.
Flexibility: By adjusting peeling parameters, layup piles, and hot pressing recipes, the line can produce plywood of different thicknesses (e.g., 6mm, 12mm, 18mm) and grades (e.g., MR, WBP).
Primary Application Scenarios
The 4x8 feet (1.2m x 2.4m) size is an internationally standardized dimension for plywood. Its manageable size, ease of transportation, and construction efficiency make it widely applicable in the following sectors:
1. Construction
This is the largest and most primary market for 4x8 feet plywood.
Concrete Formwork: One of its core uses. Plywood (especially film-faced plywood) offers a smooth surface, high strength, water, and weather resistance. It is used to pour concrete, creating smooth walls and columns, and can be reused multiple times.
Roof Sheathing: Laid over roof trusses to provide structural shear strength and a flat base for final roofing materials like shingles or metal roofing.
Wall Sheathing: Used on exterior and interior wall studs to enhance the wall's structural stability and insulation, serving as a base for external cladding, siding, or internal drywall.
Floor Underlayment: Laid over floor joists to create a strong, level subfloor for final floor coverings like carpet, hardwood, or tile.
Hoarding: Used as temporary fencing around construction sites for safety, noise, and dust isolation.
2. Furniture Manufacturing
Plywood is a fundamental material in the furniture industry, ideal for:
Panel Furniture: Used for cabinets, wardrobes, bookshelves, and TV stands for carcasses, shelves, and backs. The 4x8 size is perfect for cutting into standard cabinet dimensions, maximizing material yield.
Furniture Back Panels and Drawer Bottoms: Thinner plywood is ideal for these parts, providing support while controlling costs.
Office Furniture: Used for desks, partitions, and filing cabinets.
DIY & Custom Furniture: Loved by woodworking enthusiasts and custom furniture designers for its ease of cutting, drilling, and fabrication, used for tables, shelves, bed frames, etc.
3. Interior Decoration
Ceiling: Can be used as a base layer or decorative panel for suspended ceilings.
Partitions: Used for constructing non-load-bearing interior walls.
Feature Walls: High-quality plywood with finished surfaces (e.g., veneered, painted) can be used directly as decorative accent walls.
Shop Fitting: Used for creating display racks, shelves, and counters in stores and malls.
4. Packaging & Transportation
Packaging Cases: Used to make heavy-duty export crates and pallets for machinery, precision instruments, and electronics, providing robust protection.
Container Lining: Used in shipping containers to separate and protect goods during transport.
5. Industrial & Manufacturing
Vehicle & Ship Interior: Used for interior walls and flooring in RVs, vans, and buses, as well as bulkheads, furniture, and flooring in boats.
Subflooring: Used as a floor base in truck trailers, refrigerated vans, etc.
Workbenches & Shelving: Used in factories and warehouses to build sturdy workbenches and storage shelves.
6. Other Applications
Agricultural Use: Used in the construction of chicken coops, barns, etc.
Exhibition & Display: Used to build temporary structures like exhibition booths, billboards, and stage backdrops.
Summary: Thanks to its exceptional structural strength, dimensional stability, and versatility, 4x8 feet plywood is an indispensable base material in countless industries, from fundamental construction to high-end manufacturing. Its standard size perfectly matches modern building modules and production processes, significantly enhancing construction and manufacturing efficiency.
We are Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd China factory and manufacturer of full sets of Plywood machinery and Veneer machinery. With many years production experience, advanced production technology,experienced workers and professional engineers, we can offer you the suitable, good and strong machinery for you.
Machines include:Veneer production line(Log debaker,Veneer peeling machine, Log loader,Automatic stacker)，Blade sharpener,Veneer patching machine,Veneer dryer machine(Veneer roller dryer, Veneer mesh dryer, Veneer press dryer), Veneer gluing machine,Plywood lay-up machine, Veneer jointing machine, Plywood cold press, Hot press machine,Plywood edge trimming cutting machine, Sanding and calibrating machine, Plywood overturn machine, Lift table, and so on.
Customize Your Plywood Solution Now! Plant layout design, on-site training & global logistics support – Build your competitive plywood brand today!
