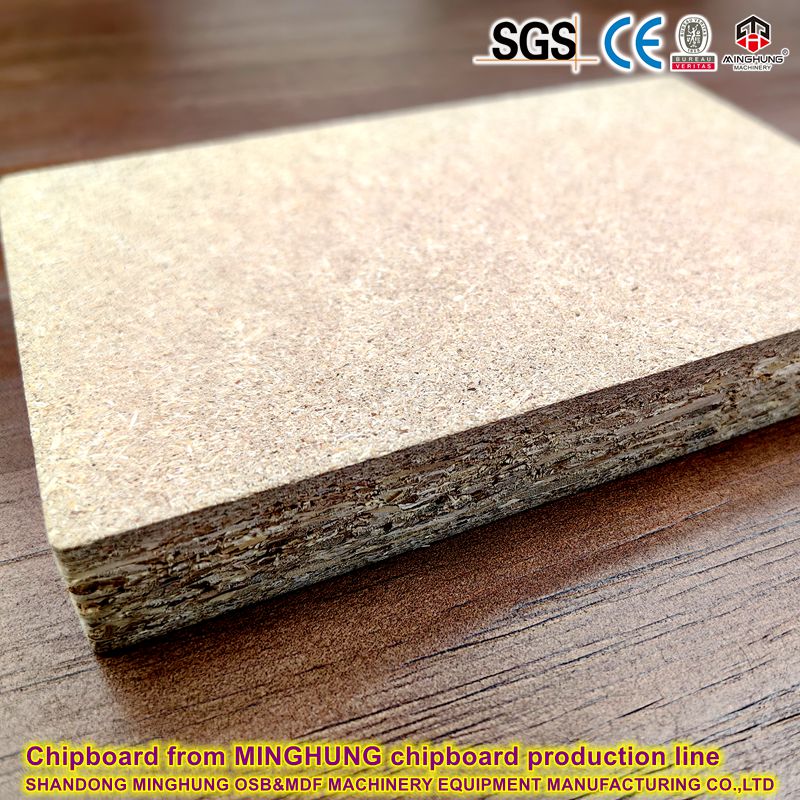

Ⅰ. PB Core Specifications
Emission Class: E2 Grade (EN 312 compliant, formaldehyde ≤0.124mg/m³)
Density: 650-700kg/m³ (high-density structure ensures strength)
Standard Size: 1220×2440mm (customizable up to 2800×2070mm)
Thickness Options: 8mm, 12mm, 15mm, 18mm, 25mm, 30mm, 40mm (±0.2mm tolerance)
Moisture Content: 5%-11% (kiln-dried for climate adaptability)
Ⅱ. Detailed Production Process
1. Raw Material Pretreatment
Wood Chipping: Drum chipper (Model BX218) processes pine/poplar into 20-50mm flakes
Screening: Triple-deck vibratory screen (8mm/5mm/3mm mesh) with magnetic separator
Fiber Preparation: Steam preheating (165℃, 0.8MPa) followed by defibration in twin-disc refiner
2. Resin Application & Drying
Adhesive Formulation: UF resin (53% solids) + 1.2% wax emulsion
Blending: Centrifugal atomizing nozzle applies 8-10% resin (based on dry fiber weight)

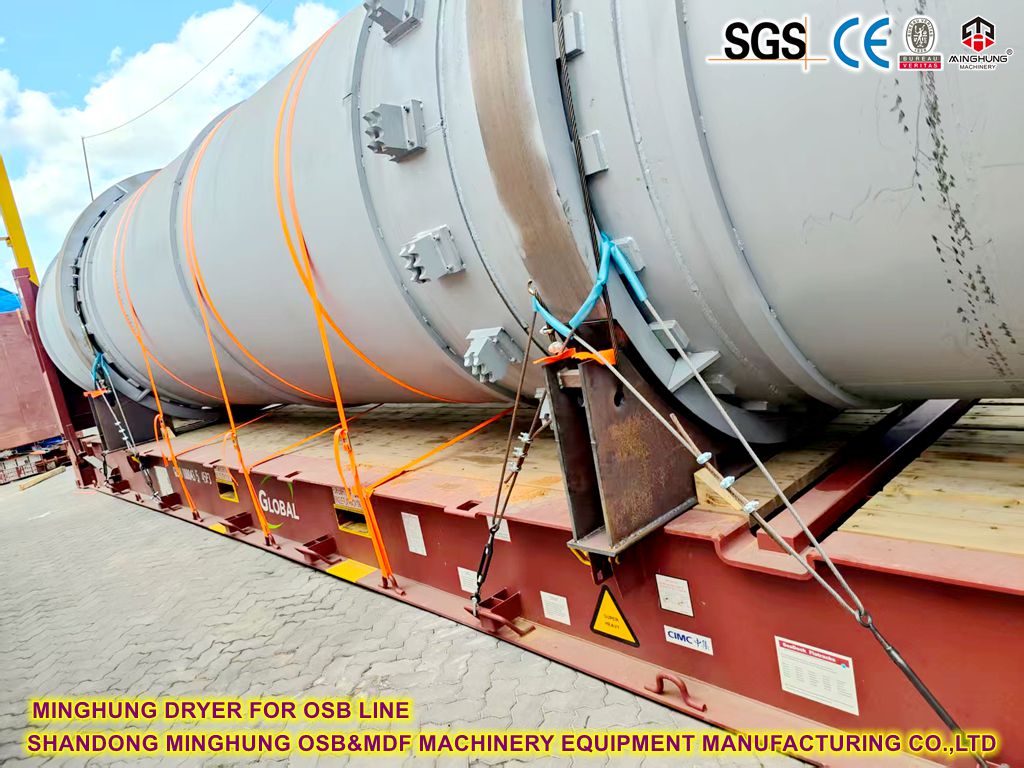

Pneumatic Drying: Three-pass pipe dryer (inlet 180℃, outlet 70℃), moisture reduced to 1.5%
3. Mat Formation
Graded Layering: Mechanical star-type former creates 3-layer structure (40% fine surface / 60% coarse core)
Pre-pressing: Continuous belt pre-compactor (line pressure 1200N/mm) to 130% target thickness
4. Hot Pressing
High-pressure Curing: 8-opening press (3000-ton force, 205℃ platen) with 3-stage control:
Stage 1: 2.8MPa × 90 sec
Stage 2: 1.5MPa × 60 sec
Stage 3: 0.8MPa pressure release × 30 sec
Cycle Time: 3 min per 18mm panel
5. Finishing
Conditioning: Forced-air cooling to 45℃ + 48h stacking equilibration
Calibrating Sanding: 4-head sander (60/100/150/240 grit) removes 0.3-0.5mm/side
Trimming: CNC cross-cut saw (±0.5mm accuracy) to 1220×2440mm
Ⅲ. Production Equipment
1. Chipping Line
Drum Chipper:315kW, 25t/h capacity
Vibrating Screen: 2000×6000mm deck, 8mm amplitude
chipper
PB vibrating screen
2. Resin System
Reactor: 10m³ stainless steel vessel, ±1℃ temp control
Mixer: High-shear disperser (1200rpm)
Reactor
Mixing machine
3. Pressing Line
Air Former: 2600mm forming width, ±5% dosing accuracy
Continuous Press: 30m press line, 100mm/s closing speed
pre press machine
continuous hot press machine
4. Finishing Equipment
Wide Belt Sander: 1350mm working width, 0.1-3mm grinding depth
Panel Saw: Servo positioning system (±0.1mm repeatability)
sander
Panel Saw
Ⅳ. Emission Class Explained
1. Classification (EN 312)
E0: Formaldehyde ≤0.050mg/m³
E1: Formaldehyde ≤0.124mg/m³
E2: Formaldehyde ≤0.250mg/m³
2. E2 Grade Definition
Test Method: 1m³ climate chamber (23℃, 45% RH)
Actual Value: ≤0.124mg/m³ (meets E1)
Application: Non-hermetic furniture (requires surface sealing)
3. Emission Control
Resin Modification: Melamine-urea copolymer formaldehyde scavenger
Post-curing: 60℃ conditioning for 72 hours
Ⅴ. Manufacturing Technology
Raw Materials: Pure pine/poplar chips with ≥85% wood content, bark-free
Pressing Process: Three-layer gradient structure (fine surface + coarse core), continuous press line (≥3000-ton pressure, 200°C+), internal bond strength ≥0.45N/mm²
- Surface Finish: Double-sided sanding to Ra≤3.2μm smoothness, flatness tolerance <0.15mm/m²
Ⅵ. Performance Advantages
Mechanical Strength: MOR≥14MPa, MOE≥1800MPa, screw holding force≥1100N
Moisture Resistance: 24h thickness swelling <10% (V313 cycle tested)
Machinability: Compatible with CNC routing, edge banding, UV coating, and thermal laminating
Stability: Linear expansion coefficient ≤0.3mm/m (20-30°C, 45-70% RH)
Ⅶ. Applications
Furniture Making: Wardrobes, bookshelves, bed frames
Commercial Projects: Hotel partitions, display props, retail shelving
Custom Service: Precision cutting to drawings, E0 grade upgrade available
