High-Capacity & High-Efficiency MDF Continuous Press Production Line

High-Capacity & High-Efficiency MDF Wet storage bin

Medium Density Fibre Board Continuous Press Production Line

Medium Density Fibre Board Continuous Press Production Line

Name: Medium Density Fibre Board Continuous Press Production Line
Brand: MINGHUNG
Rating: 5.0 (63 reviews)

Our High-Capacity & High-Efficiency MDF Continuous Press Production Line is the flagship solution for modern, large-scale wood-based panel manufacturing. Centered on globally leading continuous press technology, it achieves non-intermittent, high-speed continuous pressing of panels. Compared to traditional multi-opening hot presses, it can boost production efficiency by over 30% while significantly reducing energy consumption. Integrating a high degree of automation, intelligent control, and exceptional stability, it is specifically designed for large-scale panel producers pursuing maximum output, the lowest unit production cost, and an excellent return on investment. It is the preferred choice for building modern, digital panel factories.


Availability:



Inquire Add to Basket

Brand:
MINGHUNG

Product Description

Medium Density Fibre Board Continuous Press Production Line

Product Overview

The High-Capacity & High-Efficiency MDF Continuous Press Production Line represents the pinnacle of technological advancement in MDF manufacturing. It abandons the traditional batch-type pressing cycle and instead employs steel belts to continuously convey the mat through a high-temperature, high-pressure press tunnel, enabling genuine 24/7 non-stop, flow-line production. This model completely eliminates non-pressing idle time, which is the fundamental guarantee for achieving the "high-capacity and high-efficiency" goal.

Core Technical Features

Continuous Press Technology: The core utilizes a continuous press (e.g., ContiRoll). The mat is continuously fed through the press between two high-precision endless steel belts. Pressure and temperature are precisely controlled across different zones, creating an optimal curing profile that ensures quality while achieving maximum production speed (infeed speeds can exceed 1000 mm/s).

High-Capacity & High-Efficiency Design: The line is designed for annual capacities ranging from 150,000 m³ to over 600,000 m³. Its high efficiency is reflected in lower energy consumption per unit product, near-zero press cycle time, and reduced labor requirements due to high automation.

Superior Thickness Control & Panel Uniformity: The continuous pressing process results in exceptionally uniform density distribution and thickness tolerance (as low as ±0.15mm) across the length and width of the panel. Product quality stability and consistency far surpass that of batch-pressed boards.

High Automation & Intelligent Control: The complete line integrates advanced DCS/PLC control systems and MES. It enables fully automated control and data traceability from raw material blending and process parameters to final grading, which is key to realizing "lights-out" manufacturing and labor cost reduction.

Excellent Energy Efficiency: The continuous press utilizes thermal oil or steam heating with high thermal efficiency. Its continuous operation mode avoids the significant energy losses associated with the frequent opening and closing of traditional presses, leading to substantial overall energy savings.

Core Equipment

The "high-capacity and high-efficiency" characteristics of this production line are achieved through the synergistic operation of high-performance, highly reliable, and highly automated specialized equipment in each section.

I. Raw Material Preparation Section Equipment

The goal of this section is to provide a continuous, stable, and large supply of qualified wood fiber raw material.

1. Heavy-Duty Disc/Drum Chipper:

Function: Cuts raw logs, cores, board waste, etc., into uniform process chips.

Features: High-power drive, large feed capacity, robust disc/drum structure, adaptable to various raw materials, ensuring a continuous and sufficient chip supply for downstream processes.

MINGHUNG Scraper Conveyor for PB OSB MDF Production Line

2. Multi-Layer High-Efficiency Chip Screen & Re-Crusher:

Function: Screens and grades chips. Acceptable chips proceed; oversized chips are sent to the re-crusher; sand and fines are removed.

Features: Multi-deck vibrating screen design with high throughput and sorting efficiency, effectively ensuring the purity and uniformity of chips entering the refining system—fundamental for stable production.

fiber grinding machine for MINGHUNG MDF production line

3.High-Capacity Refining System (Defibrator/Refiner):

Function: One of the heart-of-plant equipment. Separates chips into fibers under high-pressure steam, simultaneously injecting molten wax.

Features:

Large Disc Diameter: Enables higher fiber output per unit time.

Advanced Refiner Plate Pattern & Material: Improves grinding efficiency and reduces energy consumption while ensuring fiber quality (high slenderness ratio, optimal screen analysis).

Stable Steam Pressure & Flow Control: Ensures consistent fiber quality, laying the foundation for producing high-grade MDF.

II. Fiber Processing Section Equipment

This section is responsible for uniformly blending fibers with resin and drying them to the optimal moisture content.

1. High-Precision Resin Blending System:

Function: Precisely meters and uniformly applies UF resin (or others), hardener, etc., onto the fiber surface.

High-Capacity & Efficiency Features:

Continuous Metering Pumps & Flow Meters: Enable continuous, precise resin supply with accurate ratio control.

High-Speed Ring or Disc Blender: Ensures three-dimensional, highly uniform mixing of fibers and resin in an extremely short time, preventing resin spots or dry fibers. This is key to ensuring internal bond strength and minimizing resin consumption.

2. High-Capacity Pipeline Dryer:

Function: Rapidly reduces the moisture content of resinated fibers from ~50% to 8-12% using hot air.

Features:

Multi-Stage Pipeline Design: Efficient staged drying, prevents resin pre-cure.

High-Efficiency Hot Air Furnace & Exhaust Gas Recirculation: High thermal efficiency, low energy consumption.

Precise Online Moisture Content Monitoring & Feedback Control: Ensures uniform and stable fiber drying—the primary prerequisite for stable pressing.

III. Mat Forming & Pre-Pressing Section Equipment

This section forms a uniform, high-precision mat.

Forming Machine PB OSB MDF Production Line

1. High-Speed Multi-Head Mechanical Former or Air-Felt Former:

Function: Spreads dry fibers into a uniform, fluffy mat blanket.

Features:

Multi-Head (4-8 heads) Design: Allows precise control of the board's density profile (fine surface, coarse core), extremely high forming speed compatible with the continuous press's high line speed.

Online Density Scanner (Beta-ray or X-ray): Real-time monitoring of mat uniformity with automatic feedback adjustment, guaranteeing absolute longitudinal and transverse uniformity—core to producing high-quality, large-format MDF.

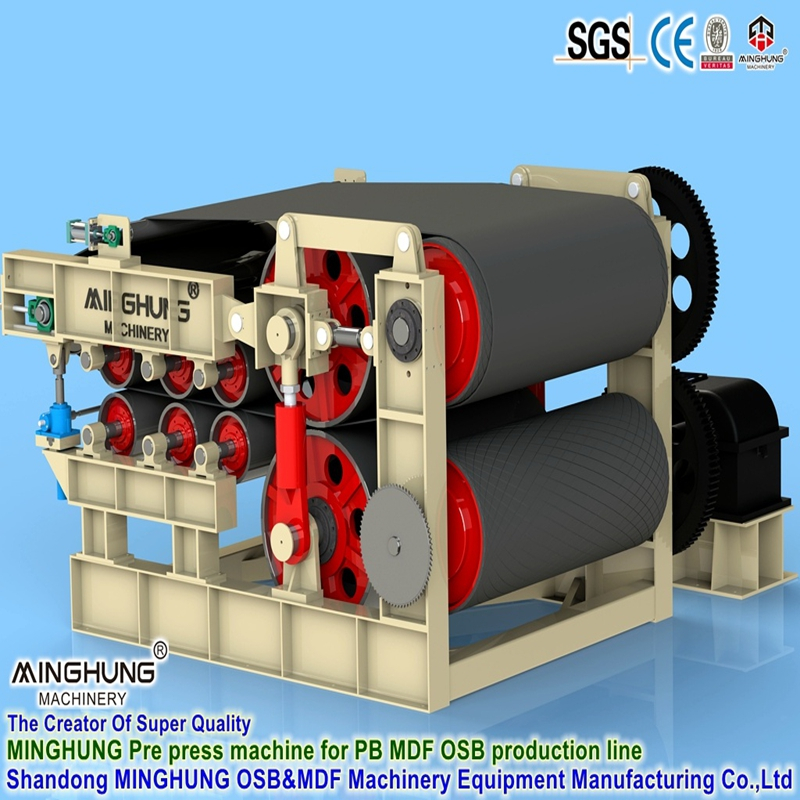

MINGHUNG MDF PB OSB Pre Pressing Machine

2. Heavy-Duty Continuous Belt Pre-Press:

Function: Initially cold-compacts the fluffy mat, expelling most air to form a coherent "blank" with sufficient strength for cutting and feeding into the hot press.

Features: High-rigidity frame, multi-roll incremental pressure design, high and adjustable pre-press pressure, capable of stably handling high-speed formed mats, preventing spring-back.

IV. Hot Pressing & Curing Core Section Equipment

This is the heart and highest-value part of the line—the Continuous Press.

MINGHUNG Continuous Hot Press Machine Line

1. Continuous Press (e.g., ContiRoll Type):

Structure & Function:

Frame & Hydraulic System: Provides the closing force (tens of thousands of tons) and precise zonal pressure control.

Heating Platen System: Heated by thermal oil or steam, divided into multiple temperature-controlled zones to create the optimal temperature curing profile.

Steel Belts & Drive System: Two high-precision, high-strength (often wear-coated) endless steel belts carry the mat continuously through the press. The drive system requires extremely stable speed.

Roller Carpet System: Patented technology in ContiRoll presses. Comprises thousands of closely arranged pressure rollers replacing traditional fixed platens. They apply pressure via hydraulics to the steel belts with minimal friction, allowing very high belt speeds and causing minimal surface damage to the mat.

Thickness Gauges & Adjustment System: Precision mechanical or hydraulic devices set and dynamically adjust the final board thickness at the press inlet and internally, achieving control accuracy up to ±0.15mm.

Details of continuous flat pressing lines

Features:

True Continuity: Non-stop production, infeed speeds can exceed 1000 mm/s, enabling massive output.

Independent Zone Control: Pressure, temperature, and thickness can be precisely controlled in zones along the press length, offering process flexibility for producing boards of different thicknesses and specifications.

High Energy Efficiency: Continuous operation avoids the significant heat loss from opening/closing cycles of traditional presses. Small steel belt surface area minimizes heat loss, leading to significant energy savings (typically 20%-30% vs. multi-opening presses).

Superior Product Quality: More uniform density profile, high internal bond strength, minimal thickness deviation, low sanding allowance.

V. Finishing & Product Section Equipment

This section processes and packages the continuous board strip exiting the press.

1. Online Cooler with Board Turner:

Function: Uniformly cools the hot board (>100°C) exiting the press to near ambient temperature, stabilizing its dimensions and relieving stress.

Features: Forced air cooling, high cooling efficiency, operates continuously in sync with the production line.

MINGHUNG PB OSB MDF Automatic Trimming Sawing Machine

2. High-Speed Cross-Cut & Rip-Saw System:

Function: Saws the continuous board strip into finished panel sizes by length (cross-cut) and width (rip-cut).

Features: Utilizes servo or hydraulic synchronization technology, where the saws move in absolute sync with the board during the cut, enabling high-speed, chip-free, high-precision dynamic sawing.

Production process

This highly automated line is a continuous process centered around a Continuous Press, transforming wood raw material into finished MDF boards non-stop.

The 5-stage flow:

1. Raw Material Preparation: Wood is chipped, screened, and refined into fibers in a Defibrator.

2. Blending & Drying: Fibers are uniformly mixed with resin and dried in a Pipeline Dryer.

3. Mat Forming: Dry fibers are formed into a uniform mat by a High-Speed Former and pre-compressed.

4. Continuous Hot Pressing (Core): The mat enters the Continuous Press, where it is cured under heat and pressure while being carried continuously by steel belts. This non-stop process is the key to high output and efficiency.

5. Finishing: The continuous board is cooled, cut, sanded, sorted, and automatically stacked/packaged.

In a nutshell: It's like making an endless "wafer," seamlessly converting Chips → Fibers → Mat → Continuous Pressing → Finished Boards, achieving unity of speed, volume, and quality.

MINGHUNG MDF production process
