The Ultra-Smooth Surface MDF Production Line is a complete, continuous, and automated system for manufacturing Medium Density Fiberboard. Compared to traditional MDF lines, its core breakthrough lies in producing panels with extremely low surface roughness, superior flatness, and excellent surface pore closure. This "ultra-smooth" characteristic significantly reduces downstream processing steps, lowers costs, and greatly expands the application of MDF in high-value-added products.
|

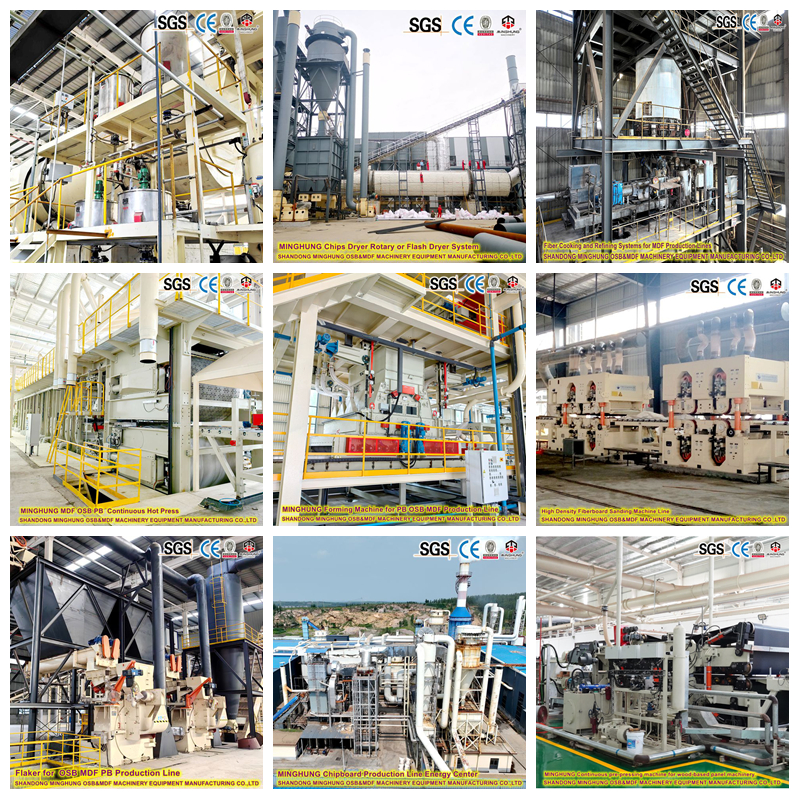

Main Components
Raw Material Preparation Section: Chipper, Screening Station, Defibrator (Fiber Preparation System).
chipper
vibrating screen
defibrator
Resin Application & Drying Section: Precision Blending System, Pipeline Dryer.
blending System
dryer
Forming & Pre-Pressing Section: Ultra-Fine Former, Continuous Belt Pre-Press.
mat forming machine
pre pressing machine
Hot Pressing & Cooling Section: Continuous Press (e.g., ContiPress) or Extended Multi-Opening Press (with finishing function), Continuous Cooler with Turner.
continuous hot press
dryer rack
Finishing Section: Cross-Cut and Rip Saws, Stacker, High-Precision Sander (Optional), Automatic Packaging System.
cross-Cut and Rip Saws
sanding machine
|
Production Process
Step 1: Raw Material Preparation & Fiber Separation
1. Chipping & Screening: Wood raw material is cut into uniform wood chips by a chipper.
2. Washing & Preheating: Chips are washed to remove impurities and then steamed in a preheater to soften them for fiberization.
3. Defibration (Refining): The softened chips enter the core Defibrator (Refiner). Under high temperature and pressure, lignin is softened, and the chips are separated into individual wood fibers. For ultra-smooth MDF, this step requires finer control to produce longer, more intact, and pliable fibers, which is the foundation for a uniform mat.
Step 2: Resin Blending & Drying
1. Precision Blending: Fibers from the refiner enter the Blender. Here, fibers are thoroughly and uniformly mixed with resin adhesive, wax, and other additives. Uniform blending is critical for ultra-smooth MDF; any resin spots can cause surface defects.
2. Pneumatic Drying: The resinated wet fibers are conveyed through a Pipeline Dryer. Hot air rapidly removes moisture, bringing the fibers to a precise, stable moisture content. Accurate drying is vital for mat stability.
Step 3: Mat Forming & Pre-Pressing
1. Ultra-Precise Forming: Dry fibers are formed into a loose fiber "mat" on a moving caul or belt by the Former. This is one of the most critical steps for an ultra-smooth surface. Multi-head or air-felt formers are typically used to create a highly uniform, multi-layered, and three-dimensional fiber distribution, ensuring perfect density profile.
2. Belt Pre-Pressing: The loose mat enters a Continuous Belt Pre-Press. It is cold-compacted to remove air and form a coherent "blank" of consistent thickness for safe transfer into the hot press.
Step 4: Hot Pressing & Curing (Core Process)
This is the core stage where MDF gains its strength, density, and ultra-smooth surface.
1. Continuous Pressing: The mat enters a Continuous Press or a specially designed long Multi-Opening Press. Under high heat and pressure, the resin cures, bonding the fibers.
2. High-Pressure Finishing Zone: A dedicated "Finishing Zone" in the latter part of the press applies extremely high pressure. The high-gloss press plates (or belts) super-calender the surface fibers, completely closing pores to create a dense, smooth "skin." Precise temperature profiling ensures uniform curing through the cross-section, minimizing internal stress.
Step 5: Cooling, Conditioning & Trimming
1. Continuous Cooling: The hot board exiting the press enters a Cooler with Turner, where it is gradually and uniformly cooled to ambient temperature to stabilize dimensions and prevent warping.
2. Conditioning: Boards are often stored in a Conditioning Area for 24-48 hours to allow for stress relief and further formaldehyde release, ensuring complete stability.
3. Sizing: The continuous board is precisely cut to required panel sizes by Cross-Cut and Rip Saws.
Step 6: Sanding & Packaging (Final Quality Assurance)
1. High-Precision Calibrating Sanding: Trimmed boards enter a High-Precision Sander. For ultra-smooth MDF, the primary goal is not to correct the surface (which is already good), but to calibrate the thickness to precise tolerances and remove the thin pre-cured layer, guaranteeing absolute flatness for subsequent finishing. A 4-head, 6-head, or more sander line is used.
2. Inspection & Packaging: Sanded panels pass through automatic quality inspection before being stacked, wrapped, and packaged by an Automatic Stacker & Packaging System.
|
Application Video
|
End-Product Advantages
Exceptional Surface Quality: Mirror-smooth surface with very low roughness (Ra value), ready for direct PVC laminating, painting, melamine foiling, or digital printing.
Excellent Physical Properties: High internal bond strength, uniform density, tight edges, and low thickness swelling upon water absorption.
Improved Processing Efficiency: Reduces or even eliminates panel sanding, saving sanding belt costs and labor, increasing downstream production efficiency.
Environmental & Energy Efficiency: Advanced processes lower energy consumption, improve resin utilization, and comply with environmental production standards.
|
Applications
High-end furniture panels (especially for high-gloss or matt paint finishes)
Interior door skins (particularly paint-grade doors)
Decorative wall panels, partitions
Craftwork and display cabinet substrates
Musical instrument components
Decorative panels requiring direct printing
|
