MH-MDF
MINGHUNG

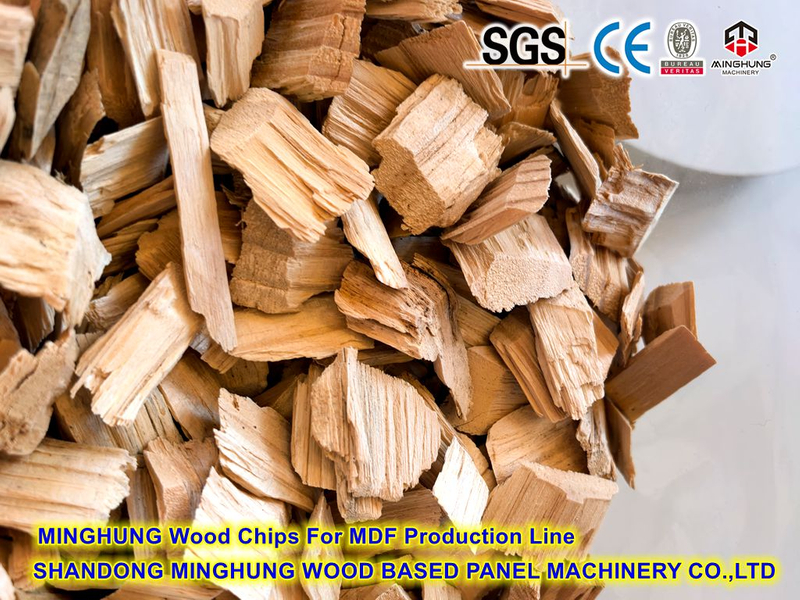

This high moisture resistance MDF production line combines continuous flat pressing technology with multi-layer press technology. The entire line features a high degree of automation and optimized energy consumption, capable of meeting the production demand of 400m³ of high moisture resistance MDF panels per day. Key equipment includes: drum chipper, defibrator (fiber refiner), triple-pass dryer, gluing system, air-lay forming machine, continuous pre-press, hot press, panel saw, and sanding machine .
Moisture Resistance Technology
The production line is equipped with a dedicated water repellent agent dosing system and modified adhesive blending system. During the fiber refining and gluing stages, MDI-modified urea-formaldehyde resin adhesive and water repellent agents are precisely added to ensure the finished panels have low thickness swelling and excellent moisture resistance . The key to moisture-resistant MDF lies in the optimization of the adhesive system and the uniform distribution of water repellents .
Defibrating & Drying System

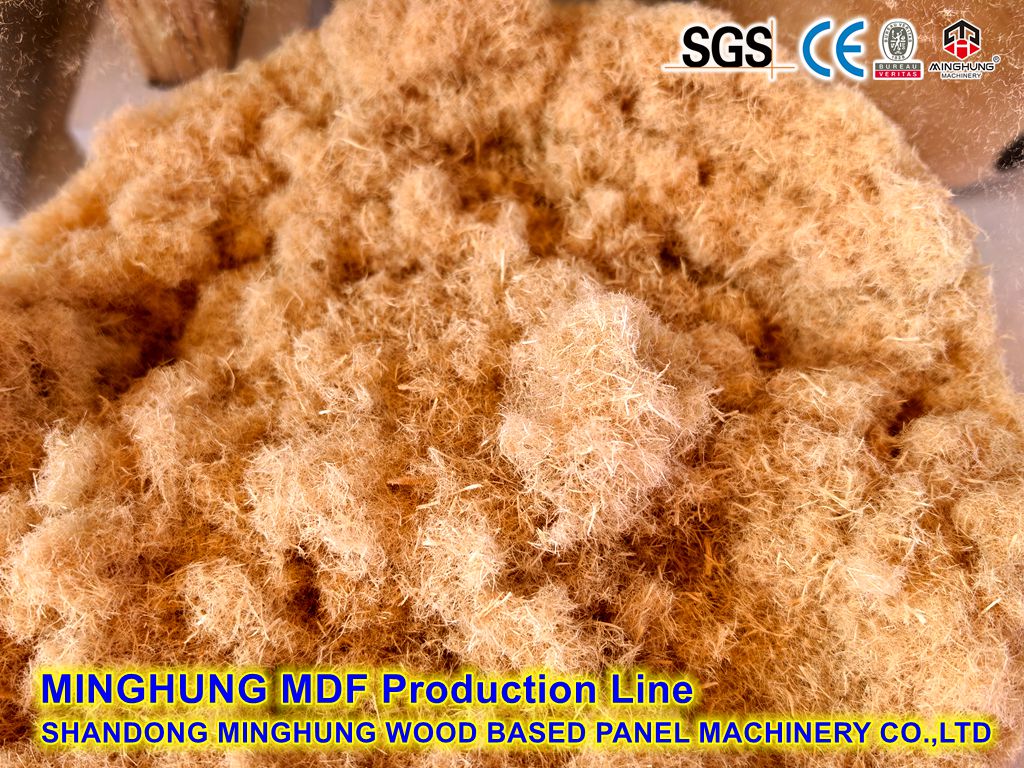

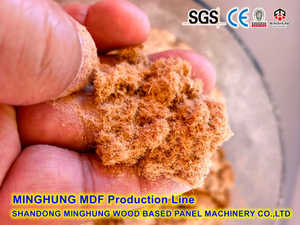

Defibrator: Wood chips are softened by high-temperature steam and then defibrated to provide high-quality fiber raw material for subsequent gluing .
Triple-Pass Dryer: Dries wet fibers to a moisture content of 8%-12%, with drying temperature controlled at approximately 165°C to prevent resin pre-curing which would affect the mechanical properties of the board .
Forming & Hot Pressing System
Forming Machine: Uses air-lay forming technology to evenly distribute glued fibers into a mat. Forming width and thickness can be adjusted according to product specifications .
Hot Press: Uses a multi-layer hot press or continuous flat press to cure the adhesive under temperature and pressure, forming MDF panels with specified thickness and density . Hot pressing temperature is typically controlled between 140°C and 220°C .
Cutting & Sanding System
Finished panels are cut to size by panel saws and then surface-sanded by sanding machines to ensure thickness precision and surface smoothness, meeting export standards and high-end application requirements .
Item | Parameter |
Daily Capacity | 400m³/day |
Panel Thickness Range | 3mm - 30mm（Adjustable） |
Finished Panel Size | 4×8ft or Customized |
Density Range | 0.50 - 0.88 g/cm³ |
Moisture Content | 8% - 12% |
Hot Press Temperature | 140℃ - 220℃ |
Dryer Power | Approx. 440kW |
Hot Press Layers | Customizable |
The production line can process various wood raw materials, including: branches, small-diameter logs, and thinning logs from fast-growing species such as poplar, eucalyptus, pine, and birch, as well as bamboo and other plant fiber materials .
High moisture resistance MDF panels are widely used in the following fields :
Kitchen & Bathroom Furniture
Interior Decoration & Wall Paneling
Laminate Flooring Substrate
Office Furniture
Molded Door Panels
Packaging Materials
Export Custom Panels
We provide one-stop services from factory planning, equipment selection, installation and commissioning, operator training, to after-sales maintenance. Key components of the production line are sourced from internationally renowned brands. The entire line can achieve automated and intelligent control, reducing labor costs and improving production efficiency and product quality .
