Core Design and Production Capacity
Customizable Formats: The production line is flexibly configurable, primarily producing international standard sizes such as 1220×2440mm (4×8 feet) and 1830×3660mm (6×12 feet), while also supporting custom rectangular formats (e.g., 2440×5490mm oversized boards) to meet non-standard requirements in specialized fields like construction, shipbuilding, and furniture.
Adaptable Product Types: Beyond standard particleboard, it can produce Medium/High-Density Fiberboard (MDF/HDF), Oriented Strand Board (OSB), and moisture-resistant/fire-retardant boards by adjusting process parameters and configurations.
Capacity Range: The designed single-line annual capacity is configurable based on client needs, typically ranging from 50,000 to 300,000 cubic meters, supporting continuous, large-scale production.
MDF
PB
OSB
Complete Process Flow and Core Equipment
The line covers the entire process from raw material handling to finished product packaging, comprising the following key sections:
Raw Material Preparation Section: Utilizes chippers, flakers, and grinders to process wood (logs, branches, recycled wood) or non-wood fiber materials into qualified flakes/fibers. Equipped with screening and re-crushing systems to ensure raw material uniformity.
flaker
chipper
Drying and Classification Section: Employs energy-efficient rotary or drum dryers, paired with air classification systems, to precisely control raw material moisture content (typically ≤2%) and separate overly fine or coarse particles.
rotary dryer
vibrating screen
Blending and Additive System: A fully automatic dosing and glue-application system for precise addition of adhesives (e.g., UF, MUF, PMDI resins), as well as functional additives like wax (water repellent), hardeners, and flame retardants.
gluing system

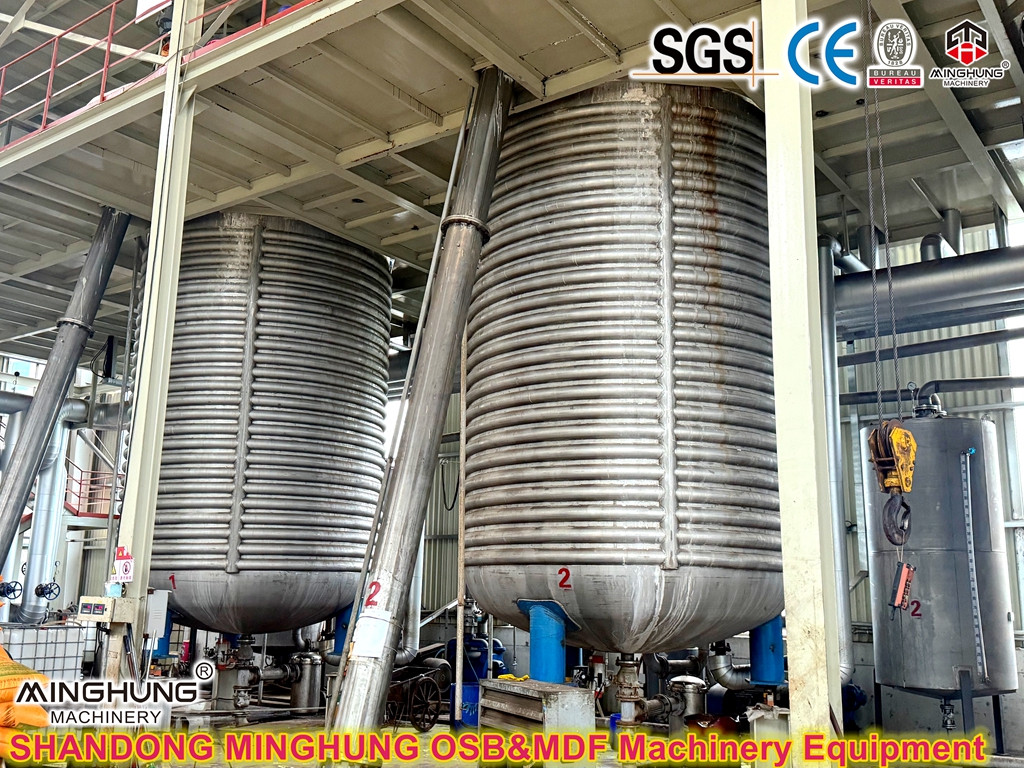

Glue reaction vessel
Mat Forming Section: Uses mechanical or pneumatic formers to create uniform, symmetrical mats. Integrated with continuous weighing and metal detection systems to ensure consistent mat density and eliminate safety hazards.
Hot Pressing Section: The core of the production line, offering two mainstream configurations:
Multi-Opening Hot Press Solution: Ideal for multi-format, flexible production. Typically equipped with 8-24 daylights, featuring simultaneous closing technology and intelligent hot-pressing processes (programmable temperature, pressure, and time curves) to ensure uniform board density profile.
Continuous Press Solution: Suited for large-scale, continuous high-output production of single formats. Offers low energy consumption and excellent surface quality with minimal thickness tolerance (±0.15mm).
Post-Pressing Section:
Cooling and Board Turning: Allows uniform cooling and internal stress relief.
Length Cutting and Trimming: High-precision cross-cut and trim saws for accurate sizing of green or finished boards.

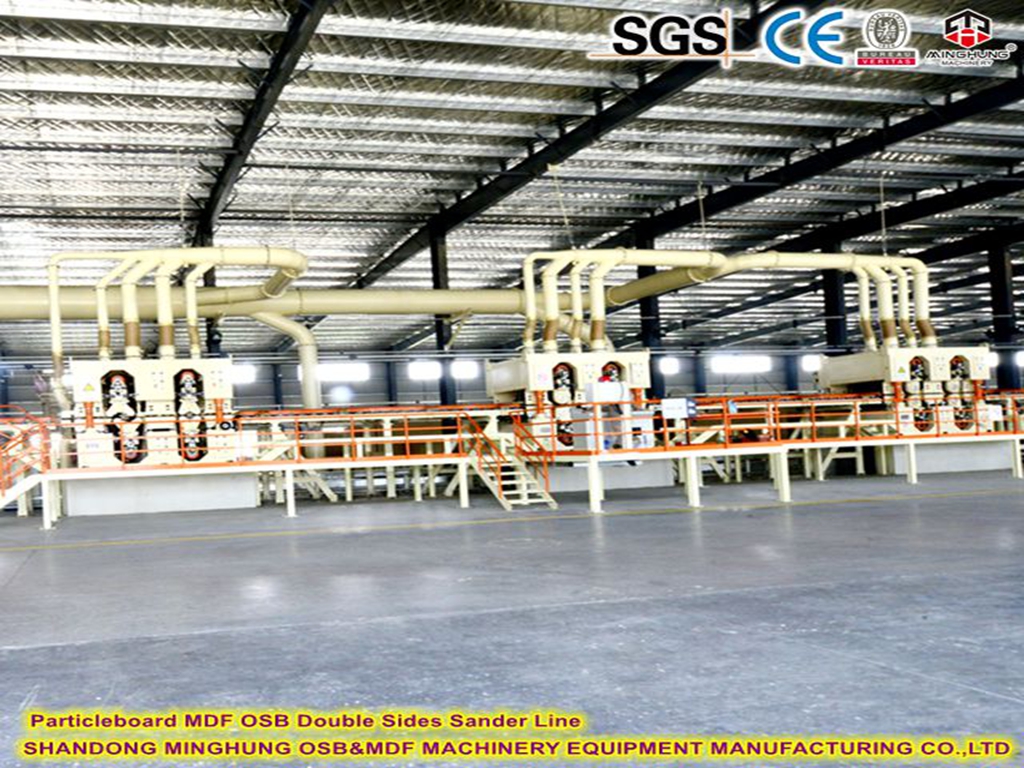

Sanding: Employs multi-head calibrating sanders (usually 4-8 heads) to achieve precise final thickness and a smooth surface finish.
Core Technical Advantages
High Flexibility: Quick changeover of forming heads and cutting parameters allows seamless switching between different standard and custom sizes, minimizing downtime.
Exceptional Quality: Precise forming and pressing control ensures key performance indicators—such as Internal Bond (IB) strength, Modulus of Rupture/Modulus of Elasticity (MOR/MOE), and Thickness Swelling (TS)—meet or exceed international standards (e.g., EN, CARB, E0/E1 emission levels).
Energy Efficiency & Environmental Compliance: Incorporates heat recovery systems (e.g., from dryer exhaust, press steam) and efficient dust/VOCs treatment units, complying with stringent environmental regulations.
Low Operational Costs: High automation reduces labor dependency. Core components use internationally renowned brands, ensuring reliability and long service life.
Typical Applications
The high-quality particleboards produced by this line are widely used in:
Furniture Manufacturing: Panel furniture, kitchen cabinets, office furniture.
Building & Decoration: Interior partitions, flooring substrates, door cores, decorative moldings.
Packaging & Transport: Pallets, packing cases.
Other Fields: Display shelves, audio equipment panels, etc.
We provide full-cycle "turnkey" project services, from factory planning, equipment installation & commissioning, process training, to spare parts supply, ensuring rapid customer start-up and continuous operational optimization.

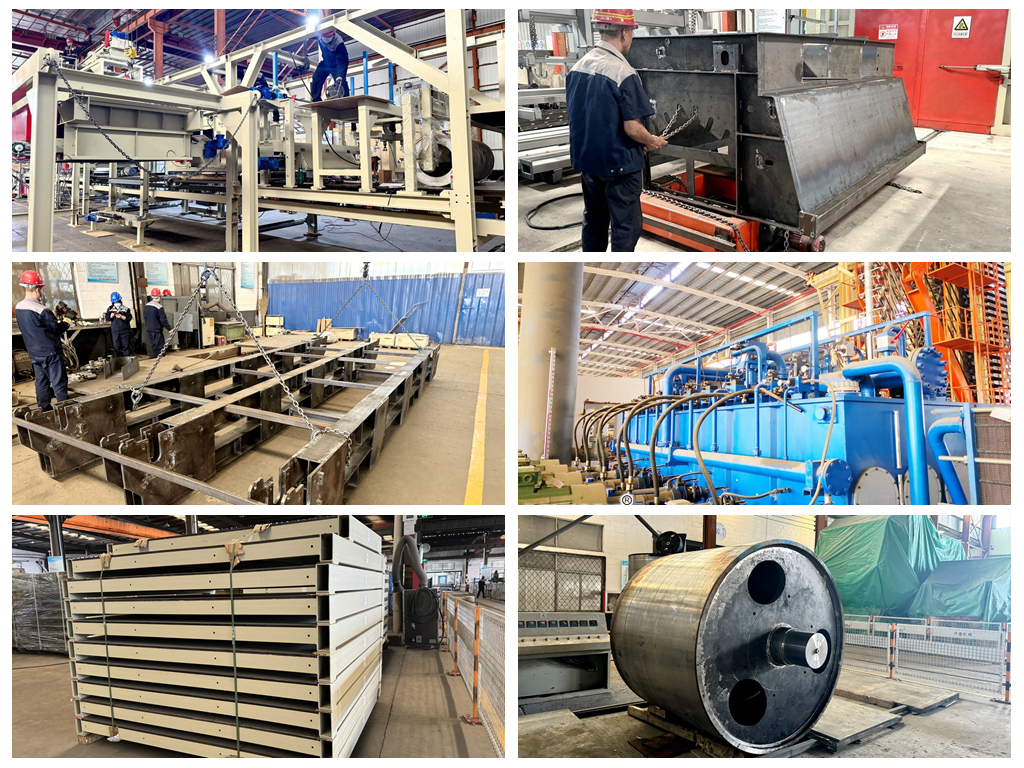

We are Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd China factory and manufacturer of full sets of Plywood machinery and Veneer machinery. With many years production experience, advanced production technology,experienced workers and professional engineers, we can offer you the suitable, good and strong machinery for you.
For more information, welcome contact us, we will reply you quickly and offer working videos with you.
