This production line centers on the philosophy of "resource recycling," addressing traditional technical challenges such as short fiber length, high sugar content, and significant silica content in agricultural residues through technological innovation, enabling large-scale, high-value utilization of agricultural residues in board manufacturing.
Stage 1: Raw Material Reception & Pretreatment (Most Differentiated)
Goal: Transform loose, impurity-laden agricultural residues into qualified, uniform "industrial feedstock."
1. Depacking/Unbaling & Coarse Reduction: Automatic bale breakers, straw cutters, primary shredders.
2. High-Efficiency Cleaning & Washing System: Multi-stage screens, density separators, intensive air classifiers, washing drums or dry cleaners. A critical step for removing soil, stones, metals, leaves, and grain residues. Bagasse requires specific depithing.
3. Specialized Drying Equipment: Rotary drum or belt dryers to reduce the typically high and variable initial moisture content to a stable level (approx. 15-25%).
cutter

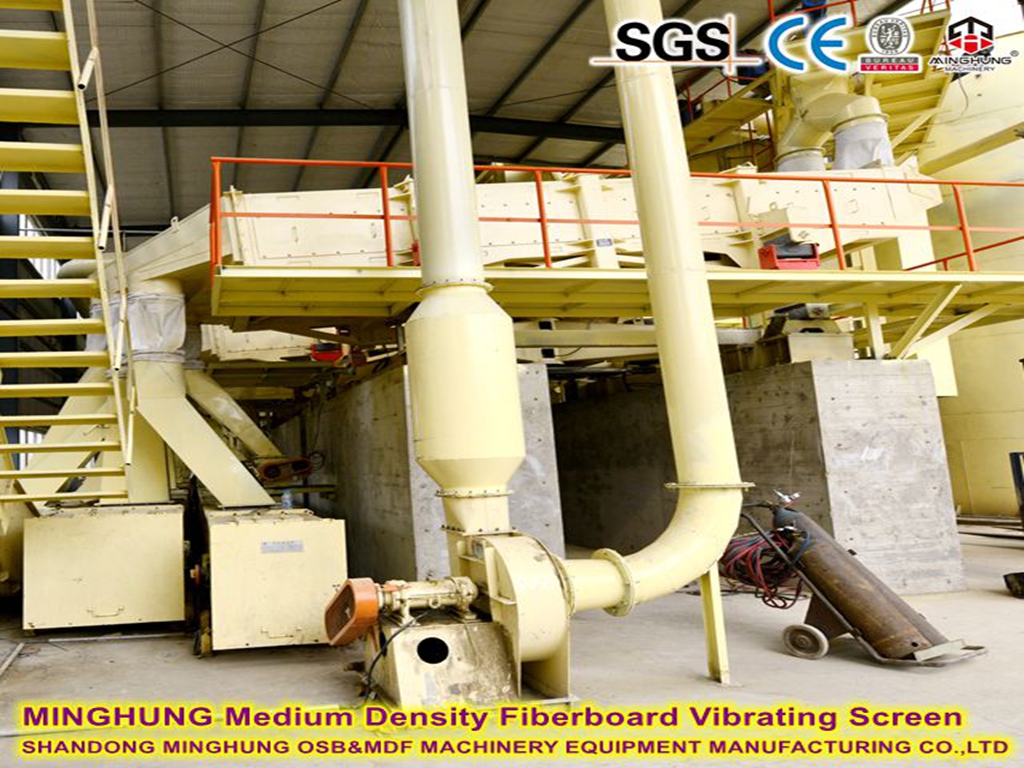

vibrating screen
dryer
Stage 2: Fiber Preparation (Core Section, Requires Wear Resistance)
Goal: Separate cleaned feedstock into up to standard fibers.
1. Storage & Metering: Non-bridging bins, precision belt weighers.
2. Wear-Resistant Refining System: Reinforced Defibrator/Refiner. The absolute core. Features include:
Special Alloy Wear Plates: For extreme abrasion resistance against silica.
Optimized Digestion: Adjusted parameters for non-wood fiber softening.
Optional Pre-impregnation: Chemical pretreatment to aid in breaking down pectins and sugars.
Stage 3: Resin Blending & Drying (Key: Adhesive Formulation & Mixing)
Goal: Ensure perfect bonding between fibers and specialized adhesive.
1. Specialized Blending System: High-speed ring or disc blenders with precision pumps for modified adhesives (e.g., MDI or modified UF resin).
2. Anti-Stick Drying System: Pipeline dryer with anti-adhesion design to handle the sticky nature of sugar-containing fibers.
gluer
rotary dryer
Stage 4: Mat Forming & Hot Pressing (Adapted for Short Fibers)
Goal: Form the resinated fibers into boards.
1. Adaptive Forming & Pre-Press: Mechanical formers and belt pre-presses adjusted for shorter fiber flowability.
2. Multi-Opening Press or Continuous Press: Multi-opening presses are often preferred for greater process flexibility. Press plates may have non-stick coatings.
mat former
pre pressing machine
multi-opening press
Stage 5: Finishing
Goal: Final processing of boards.
1. Cooling, Trimming & Sanding: Standard coolers, saws, and sanders.
2. Conditioning Chamber (Optional but Important): Climate-controlled storage for stress relief and moisture equilibration.
3. Inspection & Packaging: Automated grading, stacking, and wrapping.
Core Philosophy: An agri-residue MDF line is not a simple adaptation of a wood line; it is a dedicated system with targeted design and material reinforcements from pretreatment onwards, which constitutes its technical barrier and investment focus.
edge trimming and cutter
sander
1. Raw Material Reception and Storage: Collection, baling, and warehouse management of agricultural residues
2. Raw Material Pretreatment: Crushing, screening, cleaning, depithing, drying, etc.
3. Fiber Preparation: Digestion, refining, fiber quality control
4. Resin Blending and Drying: Fiber-resin mixing, pipeline drying
5. Mat Forming and Pre-Pressing: Forming, pre-compaction
6. Hot Pressing and Curing: Hot pressing, resin curing
7. Post-Processing: Cooling, trimming, sanding, grading
8. Finished Product Handling: Stacking, packaging, warehousing
Raw Material Advantages
Low raw material cost, wide availability
Enables resource utilization of agricultural waste
Reduces traditional wood consumption
Product Advantages
Uniform board density, stable structure
Formaldehyde emission can meet E0 standard
Better fire resistance than wood-based MDF (higher silica content)
Suitable for secondary processing like laminating and painting
Environmental Advantages
Reduces pollution from agricultural residue burning
15-20% lower energy consumption compared to traditional production lines
Products are biodegradable and environmentally friendly
1. Furniture Manufacturing: Cabinet bodies, back panels, drawer bottoms, etc.
2. Interior Decoration: Wall panels, partitions, ceiling tiles, etc.
3. Packaging Industry: Pallets, packing cases, etc.
4. Door Manufacturing: Door core materials
5. Craft Production: Photo frames, decorative items, etc.
Raw Material Adaptability: Bagasse, wheat straw, rice straw, reed, etc.
Board Density: 650-800 kg/m³
Annual Production Capacity: 50,000-300,000 m³ (customizable)
Board Sizes: 1220×2440mm, thickness 6-30mm
Formaldehyde Emission: E1 to E0 optional
Production Line Automation Level: ≥85%
cornstalk
reed
raw materials
straw
