This production line represents the heavy-duty industrial flagship configuration in the OSB manufacturing sector, embodying the highest level of contemporary engineered wood panel equipment technology. It is not merely a collection of machines but a large-scale industrial turnkey project requiring systematic planning and professional execution. The following provides a multi-dimensional analysis:
|
Product Description
Market Positioning: Targets global forestry groups, large investment corporations, or enterprises aiming to become regional market leaders. It is designed to establish competitive barriers through economies of scale, top-tier quality, and the lowest unit cost.
Design Philosophy: Adheres to the principles of "high reliability, high efficiency, high intelligence, low energy consumption, and low labor dependency." It emphasizes continuous, stable, and synchronized operation across the entire line, featuring a modular design to facilitate future upgrades and maintenance.
|
Key Technical & Economic Indicators
Item | Parameter / Description |
Designed Annual Capacity | 300,000 cubic meters (calculated for standard 12mm thickness, 7200 operating hours/year) |
Product Specifications | Thickness: 6 - 40 mm (adjustable) |
| Standard Format: 1220 x 2440 mm (4' x 8') |
| Maximum Format: Typically up to 1300 x 2800 mm or larger (depends on press width) |
| Density: 620 - 680 kg/m³ |
Production Line Speed | Continuous speed at the hot press section can reach 800 - 1200 mm/s, which determines the cycle time for the entire line. |
Personnel Requirement | With high automation, core operation and monitoring require only about 8-15 personnel per shift for a single line. |
Total Installed Power | Approximately 15,000 - 20,000 kW, depending on equipment selection and energy efficiency design. |
Comprehensive Energy Consumption | Producing one cubic meter of OSB requires about 180 - 220 kg of standard coal equivalent (covering all energy consumption including drying and pressing). |
|
Core Sections & Key Equipment
1. Raw Material Preparation Section
Large-Scale Raw Material Yard: Requires an automated storage system with roofing to maintain a buffer stock for about 7-10 days, ensuring continuous supply.
Heavy-Duty Debarking & Chipping: Employs large drum debarkers and high-capacity drum chippers. Processing capacity must match the line speed to ensure a sufficient and consistent supply of strands.
2. Strand Preparation & Treatment Section
Large Flakers/Stranders: Multiple units in parallel or series to produce a massive volume of ideal, uniform thin-long strands.
High-Efficiency Drying System: Typically configured with 2-3 large triple-pass or single-pass rotary drum dryers, with a moisture evaporation capacity of up to 15-20 tons per hour. Integrated with an advanced thermal energy center (possibly using natural gas, biomass, or steam).
Multi-Stage Precision Screening: Post-drying, strands go through multi-level screening (e.g., swinging screens, air classifiers) to precisely separate fine, long strands for surface layers and slightly wider strands for the core layer.
3. Blending, Forming & Mat Forming Section (Technological Heart)
High-Capacity Continuous Blenders: Utilizes multiple large ring blenders or continuous blenders to ensure uniform resin application on several tons of strands per minute, with glue application accuracy controlled within ±0.5%.
Industrial-Grade Forming Heads: This is one of the core technologies and most costly components. Typically configured with 4-6 forming heads to achieve precise multi-layer (usually 3 or 5 layers) oriented forming. Employs mechanical + pneumatic assistance or purely mechanical systems with millimeter-level precision, directly determining the board's physical and mechanical properties.
Heavy-Duty Mat Pre-Pressing & Inspection: The fluffy formed mat is compacted by a heavy-duty continuous pre-press and monitored in real-time by online density scanners (X-Ray or γ-ray) to detect mat uniformity, enabling closed-loop feedback control.
4. Hot Pressing and Post-Treatment Section
Ultra-large continuous flat-press machine: The most core and expensive equipment in the production line. The press machine is usually over 40 meters in length and the effective width can reach more than 2.7 meters. It adopts multi-section temperature control and hydraulic servo control to ensure that the slab is uniformly cured at a temperature range of 180-220°C, and the pressure curve can be precisely adjusted.
Fully automatic post-treatment line: It includes high-speed cross and longitudinal sawing, synchronous surface leveling and thickness setting (usually 4-6 sanding frames), automatic grading, stacking and packaging systems. The entire line is connected by robots or mechanical hands to achieve automated circulation of finished products.
5. "Industrial Brain" - Intelligent Control System
Integrated DCS/PLC system: It is not merely a simple single-machine control system, but an all-plant integrated intelligent control system covering from raw material entry to finished product warehouse.
Digital Twin and Predictive Maintenance: Advanced systems can establish digital models of equipment, using sensor data to predict the lifespan of key components (such as bearings, oil pumps), and arrange maintenance in advance to avoid unplanned downtime.
MES Manufacturing Execution System: Connected to ERP, it enables automatic production order scheduling, quality data traceability, precise management of raw materials and finished products inventory, and real-time monitoring and analysis of energy consumption.
|
Comment & FAQ
Q:What can you purchase from us?
A:Particle board production line, directional particle board production line, medium/high fiber board production line, hot press, preforming press machine, plywood production line, automatic production line for hot press, veneer dryer, hot press, cold press machine and other woodworking machinery.
Q:How long the production time?
A:If one set machine,3-4 months;If the full production line 6-8 months.
Q:What are your advantages?
A:We have rich experience in the market, with the same cost, we do better because we have strict control of the production process. We have an independent inspection department to check the quality.
|
Company Profile
Shandong MINGHUNG OSB&MDF Machinery Equipment Manufacturing Co.,Ltd. was founded in 1983, specializes in continuous press solutions for over 40 years.
MINGHUNG is a leading company in the industry of OSB&MDF making machine. With a strongfocus on producing high-quality machinery, we specialize in manufacturing thecomplete production line of Medium density fiberboard (MDF), High densityfiberboard (HDF),Particle board (PB), Oriented strand board (OSB) , Veneerable super strong particle board (LSB),Laminated board and veneer.
|
Packaging and shipping
|

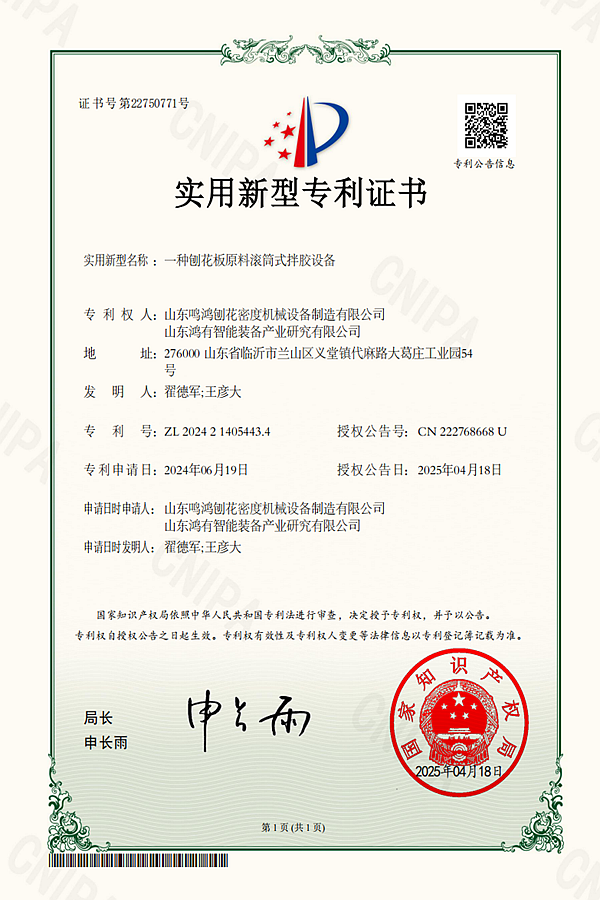

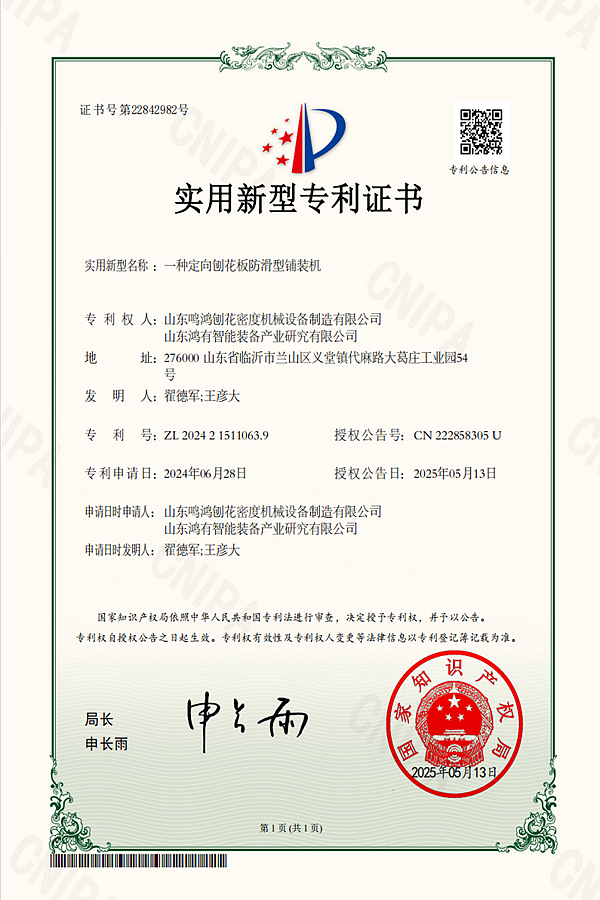

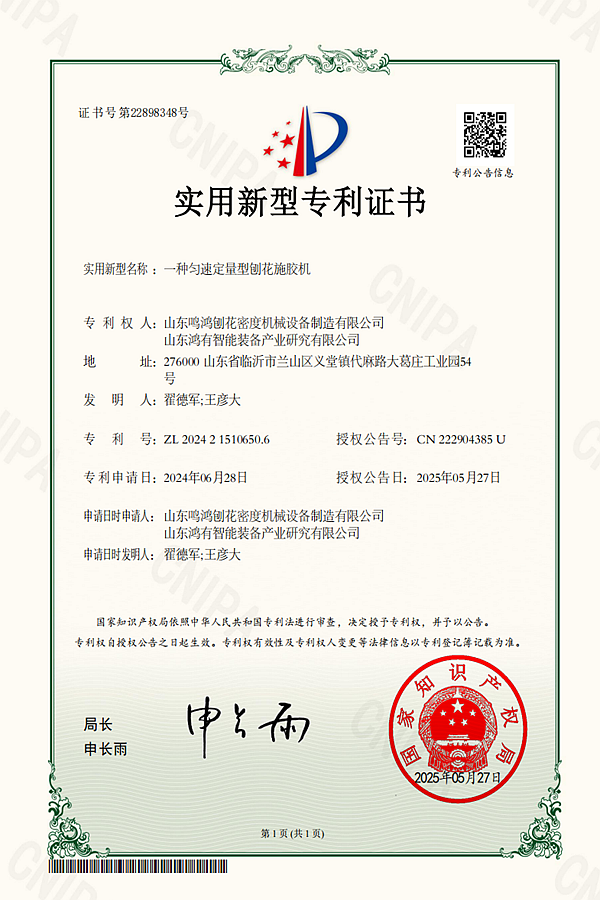

Certifications
|
